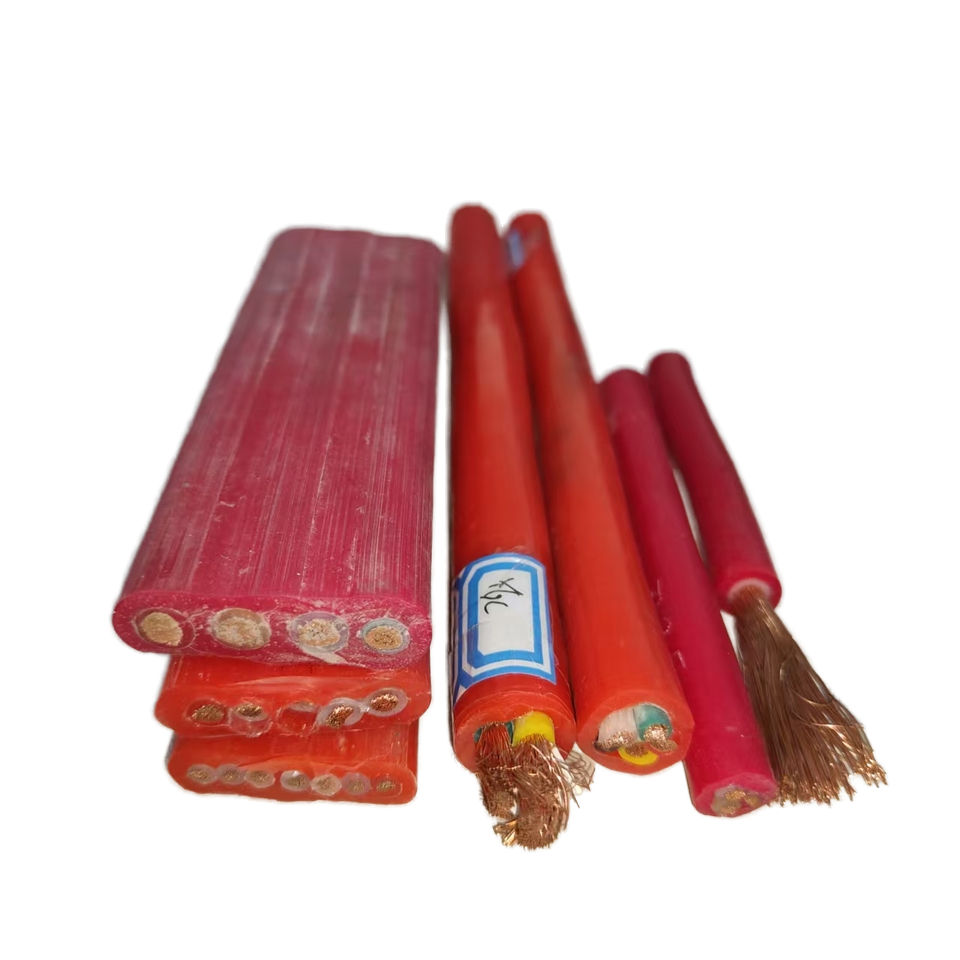

0.6KV Flat Parallel Extra Flexible Silicone Rubber Copper/Tinned
Copper Outdoor Power Cable
0.6/1KV Electric Wire High Flexible Corrosion Resistance Long
Service Life Silicone Rubber Copper Conductor Cable for industrial
and automotive applications.

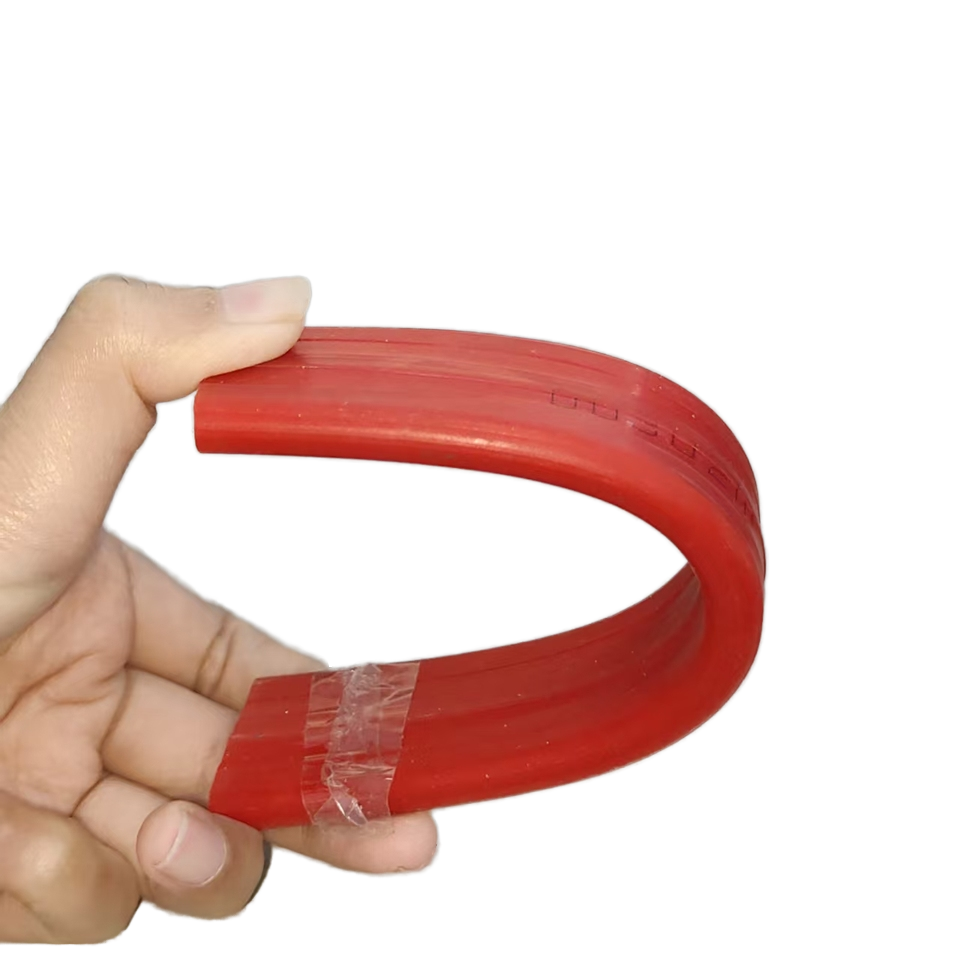

The flat silicone rubber cable is composed of a twisted fine copper
wire conductor, a silicone rubber sheath and a silicone rubber
insulation. It possesses excellent flexibility, resistance to high
and low temperatures, weather resistance, and small installation
space, among other core advantages. It is widely used in multiple
fields where the performance of cables is highly demanding,
especially in scenarios that require "space saving", "adaptation to
complex wiring" or "tolerance to extreme environments".
Product Quick Details
- Conductor: Twisted fine copper wire conductor
- Sheath: High-performance Silicone Rubber
- Insulation: Silicone Rubber
- Voltage: 0.6/1KV
- Shape: Round/Flat
- No. of Cores: Available in Single Core, 2 Cores, 3Cores, 4Cores, 5Cores, 6Cores,
8Cores and more
- Cross Section: Ranging from 0.75mm to 120mm
- Usage Scenario: Widely used in metallurgy, power, petrochemical, electronics,
automobile manufacturing and other industries
Type of Production
Tinned Copper Conductor
The pure copper conductor is electroplated with tin on the surface,
which forms a dense "physical barrier", completely preventing the
contact between the copper substrate and the external corrosive
media, thus avoiding the oxidation and sulfidation reactions of the
copper.
Stranded Copper Conductor
Pure copper conductors have strong conductivity, low energy
consumption loss, good stability, and strong corrosion resistance
at room temperature.
Application
The application scenarios of silicone rubber cables are mainly in
the fields that have "high requirements for temperature,
reliability and environmental adaptability", specifically
including:
- High-temperature processing equipment: The power supply for the heating units of equipment such as
plastic extruders, injection molding machines, and glass forming
machines can withstand a working environment of 150℃ - 200℃ for a
long time. They are resistant to oil stains and chemical corrosion,
and are not prone to cracking due to environmental aging.
- New energy field: photovoltaic systems and energy storage equipment.
- Outdoor and public facilities field: connection cables for street lamps and traffic signals (resistant
to ultraviolet rays + resistant to rain), power distribution lines
in northern cold regions (resistant to low temperatures).
- Internal wiring of intelligent devices: such as industrial control cabinets, PLCS (programmable logic
controllers), connections of sensors and actuators. The flat form
can be flexibly laid in the narrow interior of the equipment (such
as cabinet interlayers, component gaps), reducing space occupation.
Specification
| Product Name | Silicone rubber Copper Power cable |
|---|
| Brand | Ke Fei Te |
|---|
| Model | YGC/YGCB |
|---|
| Conductor Material | Copper/Tinned Copper |
|---|
| Insulation Material | Silicone rubber |
|---|
| Jacket | Silicone rubber/Nitrile rubber |
|---|
| Color | Red |
|---|
| Shape | Round wire |
|---|
| Feature | Cold resistance, acid and alkali resistance, corrosion resistance,
UV-resistance, temperature resistance -60℃~+180℃ |
|---|
Company Profile
CHONGQING KEFEI CABLE GROUP CO., LTD.
Chongqing Kefei Cable Group Co., Ltd., focus on R & D and
production of rubber cable for 40 years, it is a large enterprise
specializing in the production of cables. Our company is committed
to the production of various specifications of electrical cables,
products covering mining cables, rubber sheath cable series, shield
machine special high voltage cable and other series. Especially the
flexible cable series, has more than 20 years of exquisite skills,
can be customized according to customer requirements of all kinds
of special cables.
Our products are sold all over the world, widely used in various
fields, such as coal mine, power station, transportation and so on,
with excellent quality and excellent after-sales service favored by
domestic and foreign customers.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, We only produce the best
quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer
requirements?
A: Yes, we can customize the product according to your
requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype / email / phone, in case of any delays.
